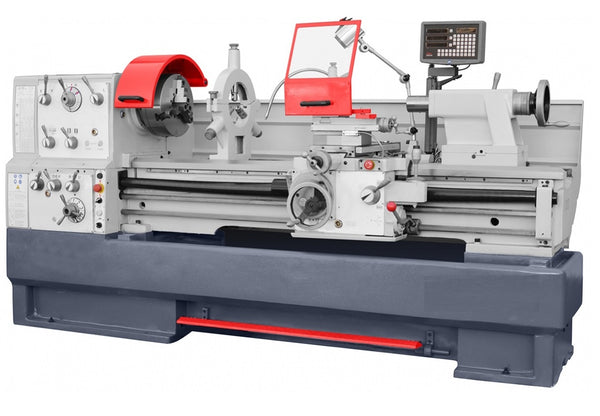

Heavy duty big bore gear head gap bed Lathe machine 2000mm between centers.
- Precision heavy duty, tool room big bore lathe.
- 2000mm between centers.
- Machine can cut 4 types of threads. (Metric,inches,module pitches and diametrical pitches).
- Includes 5 cams settings for automatic stop of the apron.
- Heavy Cast iron piece base giving stability and rigidity.
- The bed is one piece for vibration-free precision turning.
- Large 105mm spindle bore.
- Induction hardened bed-ways.
- Hardened and polished gears.
- Complete with all safety features.
- Includes foot brake, coolant system, worklight and many accessories.
- Removable gap-bed for larger diameters.
- Supplied 3 phase power
Standard accessories that come with the machine
- 3 jaw self centering chuck
- 4 jaw independent chuck
- face plate
- steady rest
- follow rest
- coolant system
- Work light
- Wedge type quick change tool post
- 2 AXIS LCD screen DRO
- tool box
- splash guard
- CE safety standards with required safety protections
- lead screw cover
- set of lathe cutting tools
SPECIFICATIONS | |
---|---|
DISTANCE BETWEEN CENTERS | 2000mm |
SWING OVER BED | 560mm |
SWING OVER CROSS SLIDE | 350mm |
SWING OVER GAP | 785mm |
SPINDLE BORE | 105mm |
RANGE OF METRIC THREADS | 0.2-14mm (41 kind of metric threads) |
SPINDLE SPEED | 12 steps (24-1700rpm) |
POWER OF THE MAIN MOTOR | 10HP |
NET WEIGHT(APPROX) | 2500kgs |
WIDTH OF BED | 350mm |
RANGE OF IMPERIAL THREADS | 2-112 tpi (60 kinds of inch threads) |
TAILSTOCK QUILL TRAVEL | 180mm |
TAPER OF TAILSTOCK QUILL | MT5 |
