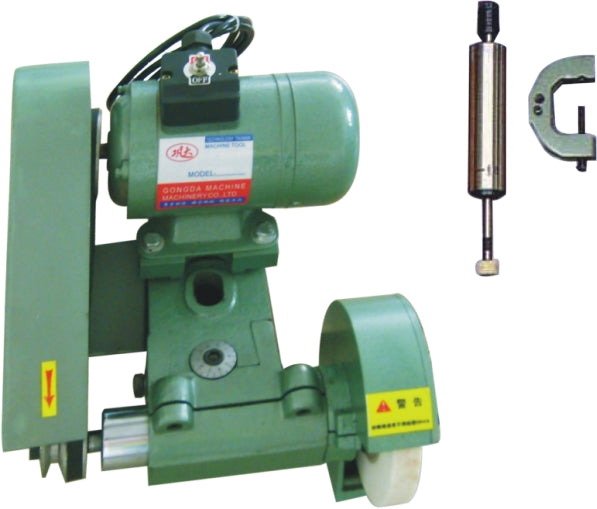

This is an ideal tool for grinding lathe tools.
With CBN wheel, it is applicable to grind cutting tools made of HSS, carbide steel, ceramic.
It features easy operation and high accuracy.
Specifications:
- Wheel diameter: 150mm
- Back angel of wheel: 30°
- Table size: 133x280mm
- Table travel: 80mm Up and down adjustment of table: -10° to 25°
- Locking block swivel: +/-70°
- Motor: 250W Speed: 1400rpm 220V
-
Grinding capacity: Square shank lathe tools or maximum diamater
28mm for round tools.
