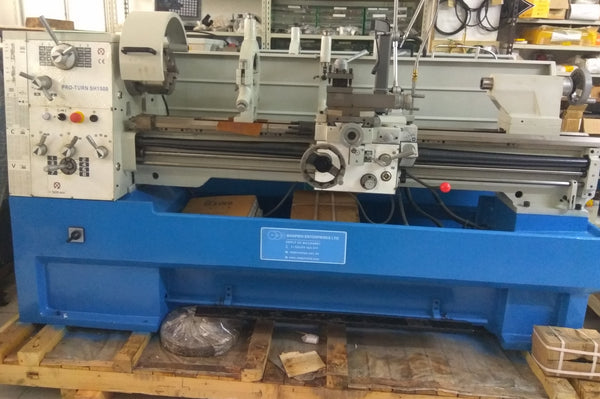

Heavy duty lathe machine MASTER SH-PRO-1500G

Product Code: C646

PRICES SHOWN ARE EXCLUDING VAT

Regular price €0,00

Heavy duty big bore gear head gap bed Lathe machine 1500mm between centers.

  • Precision heavy duty, tool room big bore lathe.
  • 1500mm between centers.

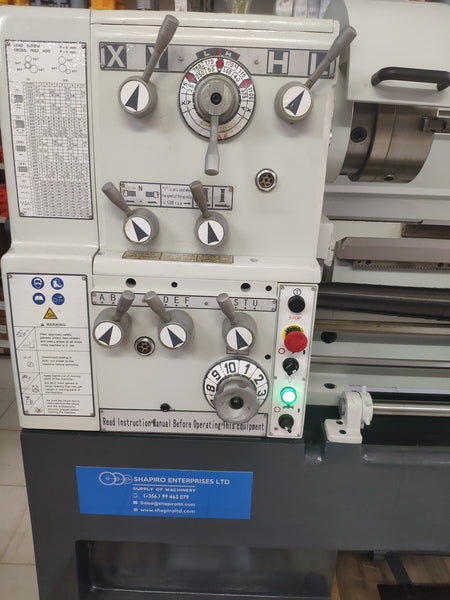

  • Machine can cut 4 types of threads. (Metric,inches,module pitches and diametrical pitches).
  • Includes 5 cams settings for automatic stop of the apron.
  • Heavy Cast iron piece base giving stability and rigidity.
  • The bed is one piece for vibration-free precision turning.
  • Large 80mm spindle bore.
  • Induction hardened bed-ways.
  • Hardened and polished gears.
  • Complete with all safety features.
  • Includes foot brake, coolant system, worklight and many accessories.
  • Removable gap-bed for larger diameters.
  • Supplied 3 phase power

Standard accessories that come with the machine

  1. 3 jaw self centering chuck
  2. 4 jaw independent chuck
  3. face plate
  4. steady rest
  5. follow rest
  6. coolant system
  7. Work light

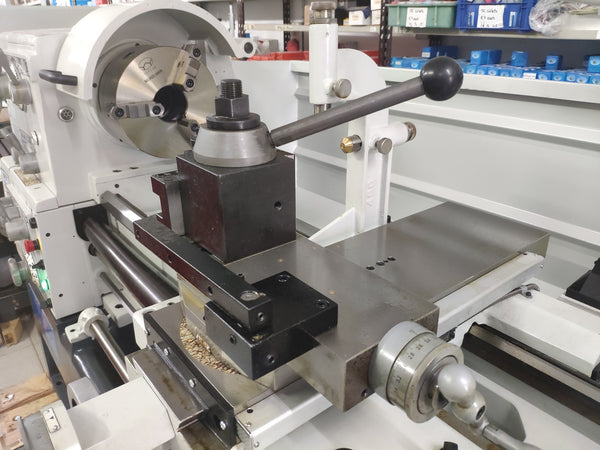

  8. Wedge type quick change tool post

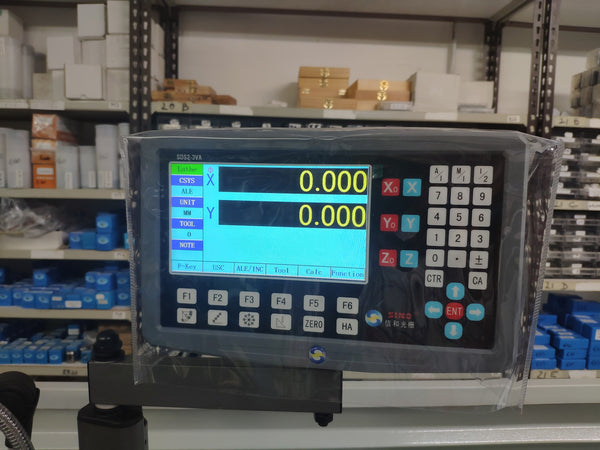

  9. 2 AXIS LCD screen DRO
  10. tool box
  11. splash guard
  12. CE safety standards with required safety protections
  13. lead screw cover
  14. set of lathe cutting tools



SPECIFICATIONS
DISTANCE BETWEEN CENTERS 1500mm
SWING OVER BED 460mm
SWING OVER CROSS SLIDE 305mm
SWING OVER GAP 690mm (gap length 200mm)
SPINDLE BORE 80mm
RANGE OF METRIC THREADS 0.2-14mm (41 kind of metric threads)
SPINDLE SPEED 12 steps (24-1700rpm)
POWER OF THE MAIN MOTOR 7.5HP
NET WEIGHT(APPROX) 2200kgs
WIDTH OF BED 300mm
RANGE OF IMPERIAL THREADS 2-112 tpi (60 kinds of inch threads)

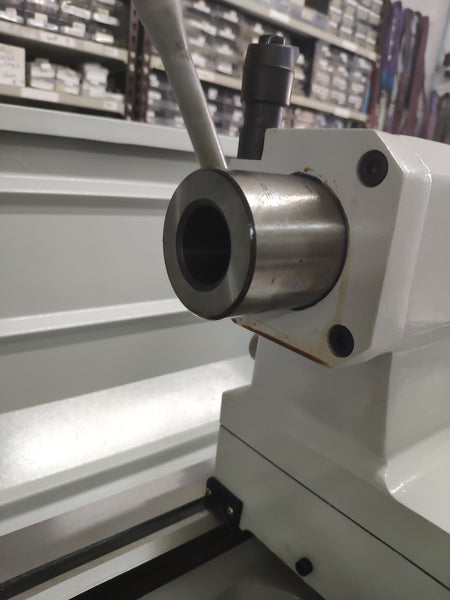

TAILSTOCK QUILL TRAVEL 130mm
TAPER OF TAILSTOCK QUILL MT4
